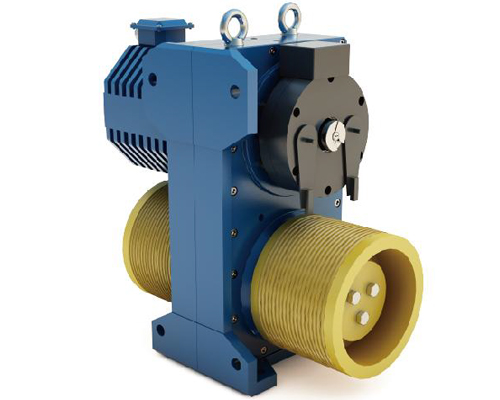

MQ 270

Permanent Magnet synchronous Gearless Traction Machine

  • Voltage                      :     220V / 380V
  • Load                           :     <= 1000kg
  • Elv. Speed                :     0.3m/s – 0.4m/s
  • Sheave Diam           :     270mm
  • Duty                          :     S5 – 40% ED
  • Starts Per Hour      :     180 st/h
  • Max. Static Load   :     2500kg
  • Weight                     :     300kg
  • Brake                        :     DC110V 2.6A
  • IP Codes                   :     IP41
  • Ins. Class                  :    F

DIMENSIONS

SPEC . SHEET:

Remark:

  • The machine can also be used for machine roomless.
